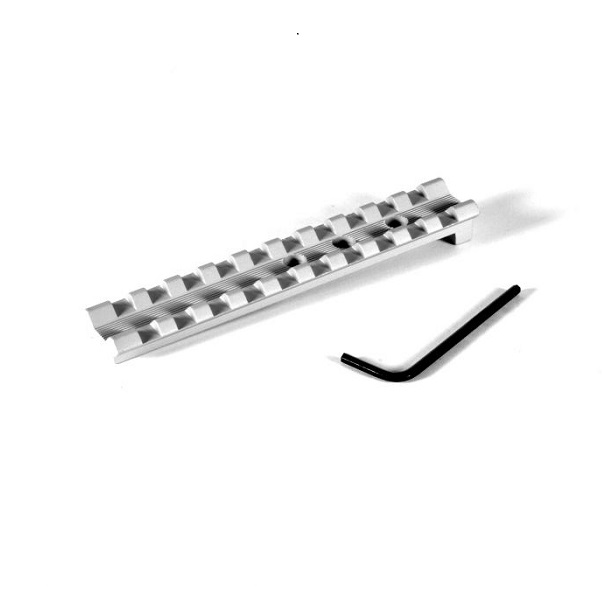

EGW S&W Revolver Picatinny Scope Mount Silver

EGW S&W Revolver Picatinny Scope Mount Silver

• SKU: 49104
• Rail Type: One Piece Picatinny
• Machined from: Domestic 6061 T6 Extruded Aluminum
• Finish: Matte Silver Anodizing
• Overall Length: 4.306″
• Height: .4″ (Top of Receiver to Top of Picatinny)
• Weight: 2 oz.
• Quick Disconnect Ring Compatible: No
• Ambidextrous: Yes
• Torque Specs: 20 in/lbs
• Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included

This mount fits:

• Smith & Wesson Revolver  K, L, N, and X frames.

The bolt pattern on this mount fits factory drilled Smith & Wesson revolvers. The mount is also available undrilled, to accommodate unconventional bolt patterns.

Swing the cylinder out on your gun and look under the top strap. If you see the holes under the sight, through the top strap, your gun is factory drilled and tapped. Our mount fits snugly into the rear sight cut and has a recoil shoulder, unlike some mounts that are simply radiused to fit the top radius and do not go into the rear sight cut.

If your top strap is not already drilled and tapped (pictured above), our mount will not work with your gun. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
